In Abilene, a truck needs to be large enough to haul serious loads but agile enough to navigate downtown parking and standard home garages. The 2026 Ford Ranger hits this "Goldilocks" zone with engineering that maximizes internal volume without inflating its external footprint.

Whether you are measuring for garage clearance or checking if a pallet of sod fits in the bed, here are the critical dimensions of the 2026 Ford Ranger.

Exterior Dimensions: Garage & Parking Ready

	The 2026 Ford Ranger SuperCrew® is designed with a wheelbase that promotes stability while towing without becoming unwieldy. Total Length: 210.6 inches. This length allows the Ranger to fit comfortably in most standard 20-foot garages, leaving room to walk around the front or rear. Wheelbase: 128.7 inches. A longer wheelbase improves ride quality on Texas highways by reducing the “chop” often felt in smaller trucks. Width (without mirrors): 75.5 inches. Width (with mirrors): 86.7 inches.

The 2026 Ford Ranger SuperCrew® is designed with a wheelbase that promotes stability while towing without becoming unwieldy.

Total Length: 210.6 inches. This length allows the Ranger to fit comfortably in most standard 20-foot garages, leaving room to walk around the front or rear.
Wheelbase: 128.7 inches. A longer wheelbase improves ride quality on Texas highways by reducing the “chop” often felt in smaller trucks.
Width (without mirrors): 75.5 inches.
Width (with mirrors): 86.7 inches.

Bed Dimensions: Cargo Utility

The bed is the business end of any truck. The 2026 Ranger prioritizes width between the wheel wells to maximize usable flat space. Bed Length: 59.6 inches (approx. 5 feet). Cargo Box Volume: 43.5 cubic feet. Width Between Wheelhouses: 48.2 inches. Why It Matters: The 48.2-inch width between the wheelhouses is a critical engineering benchmark. It means you can load standard 4x8 sheets of plywood or drywall flat on the floor of the bed, rather than angling them against the wheel wells where they might break or warp.

The bed is the business end of any truck. The 2026 Ranger prioritizes width between the wheel wells to maximize usable flat space.

Bed Length: 59.6 inches (approx. 5 feet).
Cargo Box Volume: 43.5 cubic feet.
Width Between Wheelhouses: 48.2 inches.

Why It Matters: The 48.2-inch width between the wheelhouses is a critical engineering benchmark. It means you can load standard 4x8 sheets of plywood or drywall flat on the floor of the bed, rather than angling them against the wheel wells where they might break or warp.

A man gettin things from the bed of a ranger.

Interior Room: SuperCrew® Comfort

	Midsize does not have to mean cramped. The 2026 Ranger cabin maximizes vertical space and legroom for rear passengers. Front Headroom: 41.0 inches. Front Legroom: 43.7 inches. Rear Legroom: 34.6 inches.

Midsize does not have to mean cramped. The 2026 Ranger cabin maximizes vertical space and legroom for rear passengers.

Front Headroom: 41.0 inches.

Front Legroom: 43.7 inches.

Rear Legroom: 34.6 inches.

Off-Road Geometry (4x4 Models)

For those looking at the FX4 or Raptor trims, ground clearance determines where you can go. Ground Clearance: 9.3 inches (Standard 4x4) Approach Angle: 30.2 degrees Departure Angle: 25.8 degrees Engineering Insight: The high approach angle allows the front tires to attack steep inclines or rocky ledges without the front bumper scraping. The 9.3 inches of clearance clears most standard ruts found on lease roads.

For those looking at the FX4 or Raptor trims, ground clearance determines where you can go.

Ground Clearance: 9.3 inches (Standard 4x4)
Approach Angle: 30.2 degrees
Departure Angle: 25.8 degrees

Engineering Insight: The high approach angle allows the front tires to attack steep inclines or rocky ledges without the front bumper scraping. The 9.3 inches of clearance clears most standard ruts found on lease roads.

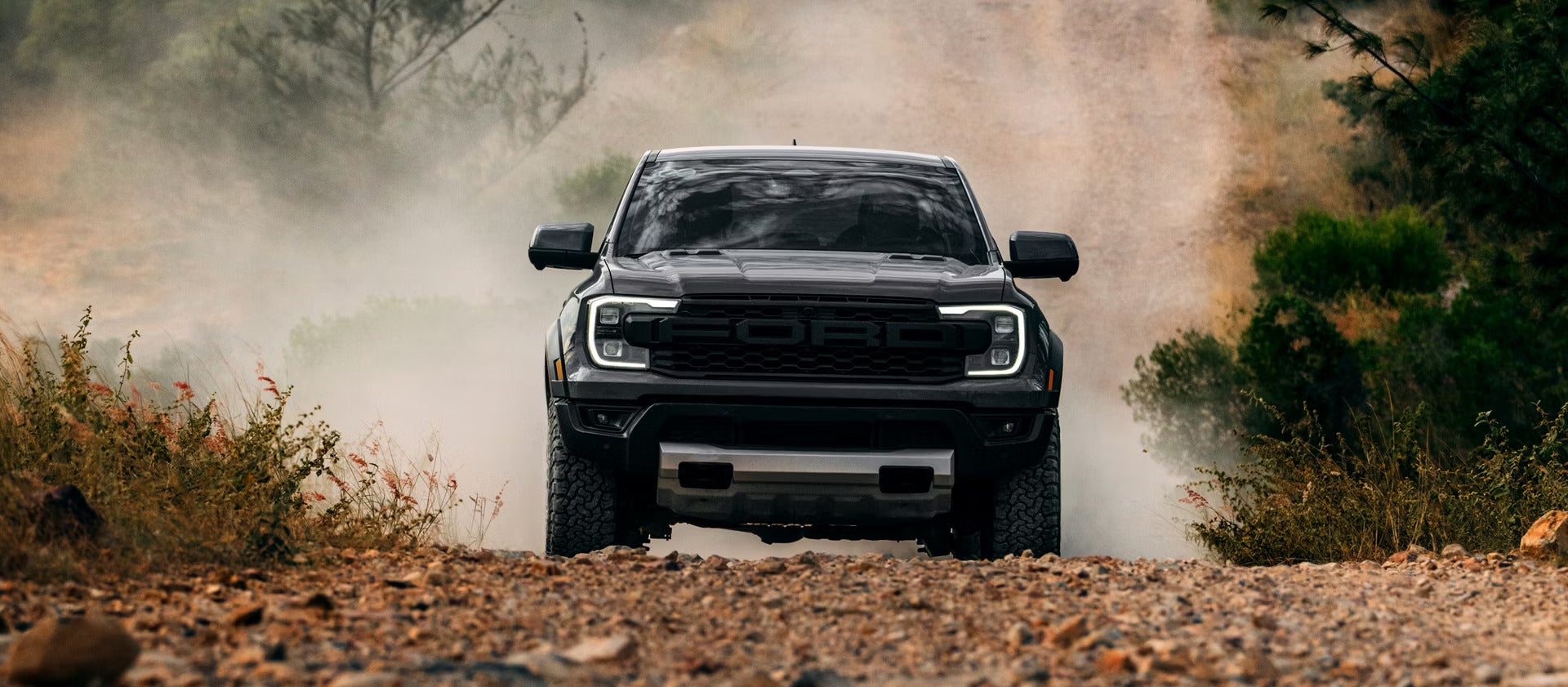

A black ford ranger raptor driving off-road.

2026 Ford Ranger Spec Table

Measurement	Dimension (SuperCrew® 4x4)
Length	210.6 in.
Height	73.9 in.
Width (Mirrors Folded)	79.8 in.
Ground Clearance	9.3 in.
Front Legroom	43.7 in.
Rear Legroom	34.6 in.
Max Payload	1,711 lbs (varies by trim)
Fuel Tank Capacity	18.8 Gallons

Why Buy from Arrow Ford?

Knowing the specs is one thing; seeing how they fit your life is another. At Arrow Ford, we encourage you to bring your tape measure. Check the bed with your own tools or see if your child’s car seat fits in the back.

We Know Trucks: Our team can explain how these dimensions translate to towing stability and daily livability.
Custom Accessories: Need a bed extender or a tonneau cover to maximize that cargo space? Our parts department has you covered.

Measure it for yourself. Visit us in Abilene today to sit inside the 2026 Ford Ranger and see how big "midsize" really feels.
