2025 Ford Expedition Towing Capacity

Shop Expedition Inventory Ford Expedition Research Hub Research Hub

The 2025 Ford Expedition is built for big jobs—from hauling boats to towing trailers through rugged West Texas terrain. Powered by a 3.5L EcoBoost® engine and paired with a 10-speed automatic transmission, the Expedition offers a maximum towing capacity of up to 9,600 pounds when properly equipped.

At Arrow Ford in Abilene, TX, we’ll help you find the right Expedition configuration to match your towing demands—whether you're hauling equipment across a ranch or trailering out to Lake Brownwood.

2025 Expedition Towing Capacity by Configuration

Configuration	Axle Ratio	Max Towing (SWB)	Max Towing (LWB/MAX)
3.5L EcoBoost® 4x2 (3.31)	3.31	6,000 lbs	6,300 lbs
3.5L EcoBoost® 4x4 (3.31)	3.31	6,000 lbs	6,300 lbs
3.5L EcoBoost® 4x2 (3.73)	3.73	9,000 lbs	9,000 lbs
3.5L EcoBoost® 4x4 (3.73)	3.73	9,600 lbs	9,000 lbs

*Note: Maximum towing requires the Heavy-Duty Trailer Tow Package and a weight-distributing hitch.*

What's Included in the Heavy-Duty Trailer Tow Package?

	To safely reach the Expedition's full towing potential, Ford includes several required upgrades: Class IV Hitch Receiver (Factory-Installed) 4-/7-Pin Connector Upgraded Radiator & Axle Integrated Trailer Brake Controller Tow/Haul Mode & 2-Speed Auto 4WD Pro Trailer Backup Assist™ 2.0 Pro Trailer Hitch Assist™ Trailer Sway Control + Lane Keeping Alert 360-Degree Camera with Hitch View

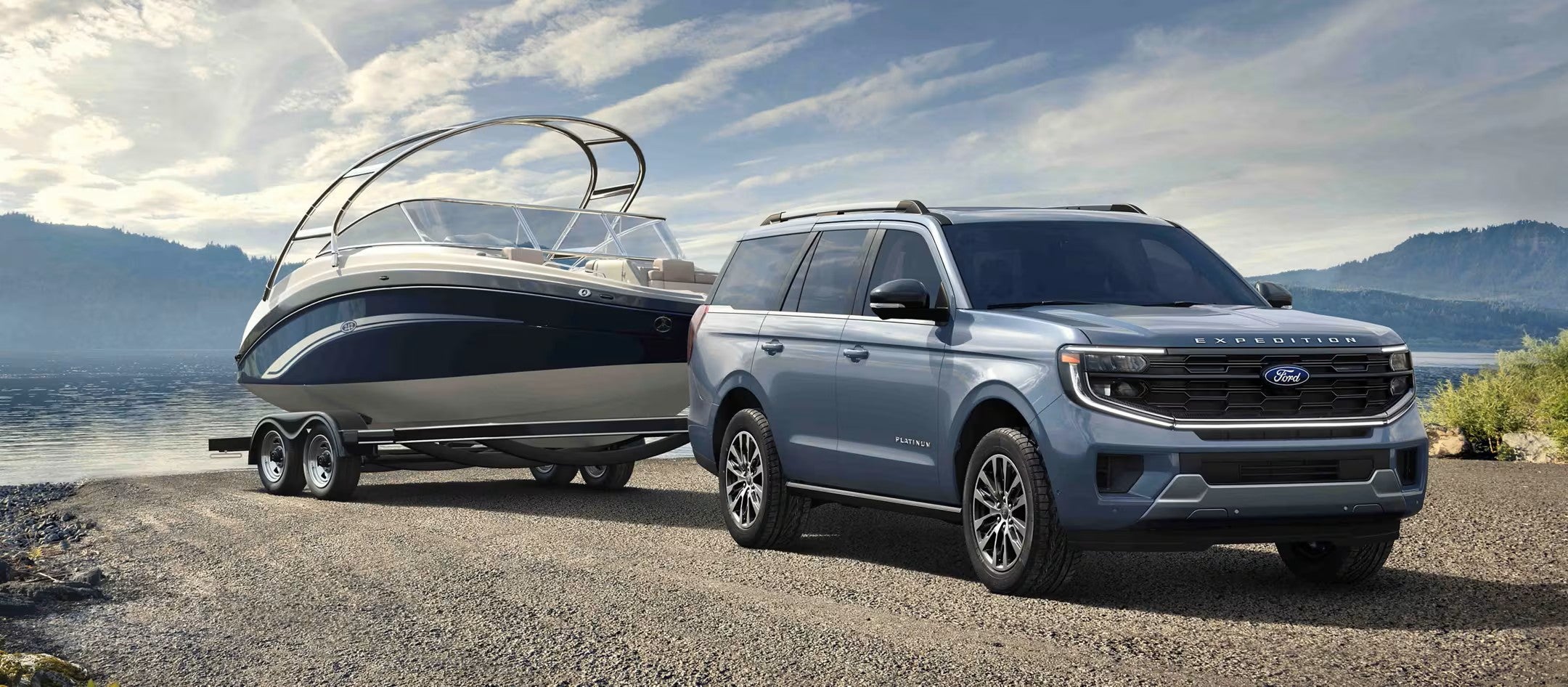

a 2025 ford expedition hauling a speed boat

To safely reach the Expedition's full towing potential, Ford includes several required upgrades:

Class IV Hitch Receiver (Factory-Installed)
4-/7-Pin Connector
Upgraded Radiator & Axle
Integrated Trailer Brake Controller
Tow/Haul Mode & 2-Speed Auto 4WD
Pro Trailer Backup Assist™ 2.0
Pro Trailer Hitch Assist™
Trailer Sway Control + Lane Keeping Alert
360-Degree Camera with Hitch View

Which 2025 Expedition Trim Is Best for Towing?	4x2 vs 4x4 for Towing: Which Should You Choose?
Platinum: High-output engine, full tow tech suite, trailer camera aids Tremor: Standard 4WD, rugged suspension for off-road	4x2 models are ideal for flat roads, city towing, and lighter trailers. 4x4 configurations offer superior traction on hills, gravel, and boat ramps.
The Expedition’s advanced 4WD with 4-Auto Mode automatically adjusts torque to the wheels for traction in slippery or unpredictable conditions—perfect for West Texas ranchers or weekend lake haulers.

Expedition SWB vs. MAX: Hitch Ratings & Tongue Weights

Spec	Expedition SWB	Expedition MAX
Weight-Carrying Hitch	7,000 lbs	7,000 lbs
Weight-Distributing Hitch	9,600 lbs	9,000 lbs
Max Tongue Weight (WDH)	960 lbs	900 lbs
Frontal Area Limited (HD)	60 sq. ft	60 sq. ft

Is the 2025 Ford Expedition Good for Towing?

Absolutely. With up to 9,600 lbs of towing capacity, advanced trailer control features, and rugged options like the Tremor or SSV, the 2025 Ford Expedition is built to haul heavy with confidence. Whether you're towing livestock, work trailers, or your favorite weekend toys—this full-size SUV does it all. Find the 2025 Expedition for Towing in Abilene, TX
